Power Quality
Active harmonic filter
Enjoypowers Active Harmonic Filter (AHF) is an advanced power quality solution that mitigates harmonics, improves power factor, and balances three-phase loads.
Meets IEEE 519 harmonic standards
THDi reduction to <5%
Neutral current harmonic elimination
Three-level topology technology in collaboration with Infineon
Modular & scalable design
Voltage range
Enjoypowers AHF supports multiple voltage levels, including 200V, 400V, 480V, 690V, and 800V, ensuring seamless integration across diverse electrical systems.
Rated capacity
With rated capacities from 30A to 200A, our AHF provides scalable harmonic filtering solutions for various industrial and commercial applications.
Harmonic orders
Effectively eliminates 2nd to 50th order harmonics, improving power quality, reducing THDi, and ensuring compliance with IEEE 519 standards.
VOXCELS Rated Capacity vs. Voltage Range for AHF Modules
| Voltage(Vac) | ||||||
| 800 | 100 | |||||
| 690 | 100 | |||||
| 480 | 50 | 75 | 100 | 150 | ||
| 400 | 30 | 50 | 75 | 100 | 150 | 200 |
| 200 | 30 | 50 | 75 | 100 | 150 | 200 |
AHF Core Specifications Overview
Frequency: 50/60Hz
Efficiency: >97%
Response Time: <10ms
Harmonic Elimination Rate: >95%
Wiring Types: 3P3W/3P4W (Compatible)
Communication Interface: RS485, Modbus Protocol
Installation Types: Rack-mount, Wall-mounted, and Floor-standing Cabinet
Working Principle of AHF
AHF detects harmonics in real-time and generates counteracting current to eliminate harmonic distortion, ensuring power quality.

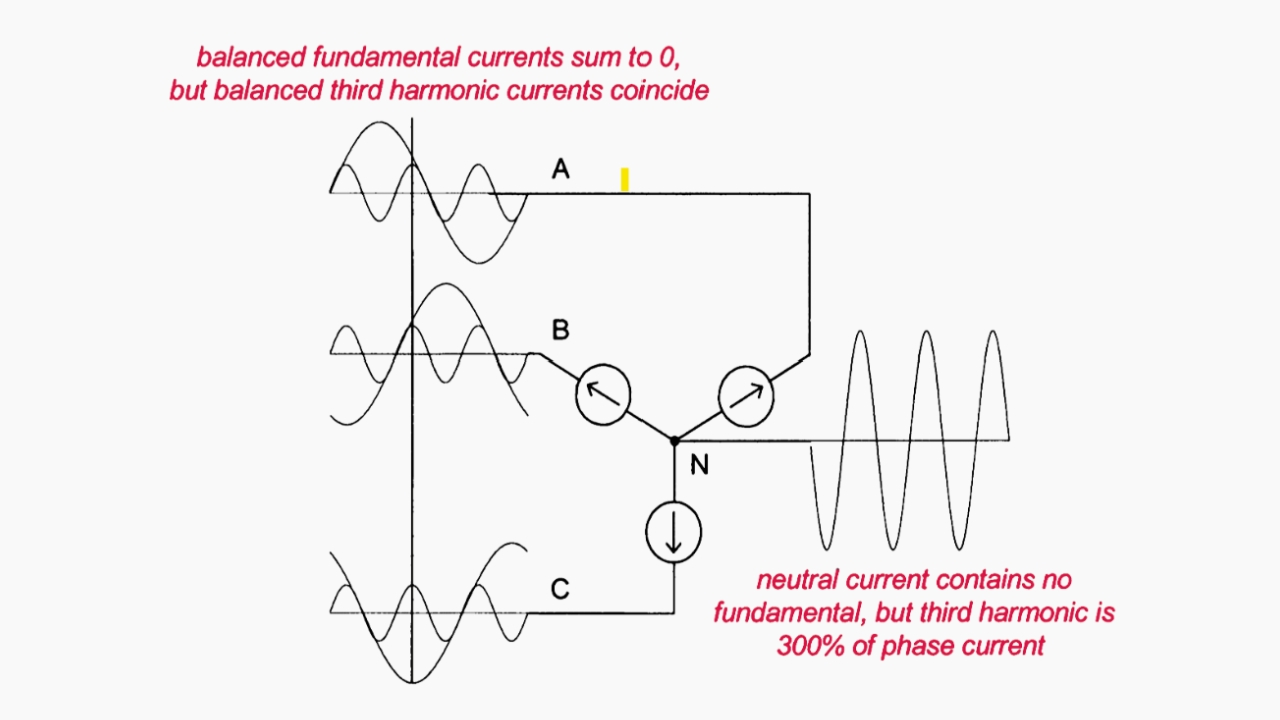

Eliminating Neutral Current with AHF
Neutral current occurs due to third-order harmonics and unbalanced loads, leading to excessive current flow through the neutral conductor. This can cause overheating, equipment damage, and inefficiency in the power system.
AHF effectively eliminates neutral current caused by harmonic distortion, improving system stability and safety.
Modular Design
Modular design
Ultra-compact design, wall-mounted and rack-mounted structure, and fine capacity allocation can fully meet customer needs, suitable for applications with limited space, renovation projects.
Easy to transport and replace, easy to integrate into the cabinet.
Contact us Now
If you need power quality solutions, you are welcome to contact us!
