POWER QUALITY SOLUTIONS
——
Enhance Power Efficiency | Reduce Harmonics | Improve Power Factor
Why Power Quality Matters?
——
Poor power quality can lead to increased energy costs, reduced equipment lifespan, and operational inefficiencies. Common issues include:
Causes overheating and equipment malfunctions
Leads to higher electricity bills and penalties
Affects sensitive electronic devices
Traditional VS Modern Power Quality Solutions
——
| Feature | Traditional Capacitor Banks | Static Var Generator (SVG) | Active Harmonic Filter (AHF) |
| Response Time | 10-20 sec (relay switching) | <5ms | <5ms |
| Harmonic Control | May cause resonance | No resonance issues | Filters 2nd-50th order harmonics |
| Maintenance | High (capacitor aging, relay wear) | Low | Low |
| Efficiency | Limited performance | High efficiency | High precision |
Why Upgrade?
Avoid resonance problems and overcompensation
Reduce energy waste and improve power stability
Ensure compliance with IEEE 519 and IEC standards

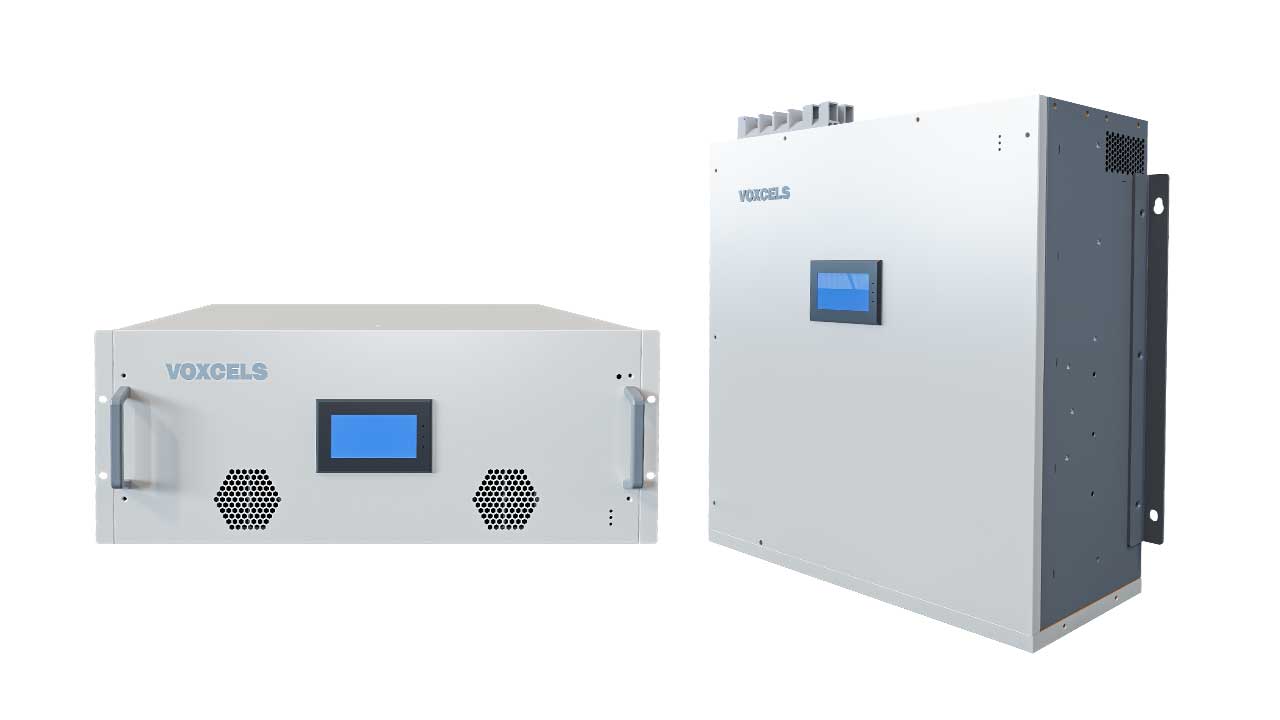

Our Power Quality solutions
——
Active Harmonic Filters (AHF)
Active Harmonic Filters (AHF)
✔ Eliminates harmonics from 2nd to 50th order
✔ Reduces total harmonic distortion (THD) to below IEEE 519 standards
✔ Prevents overheating of transformers, motors, and cables
Static Var Generators (SVG)
Static Var Generators (SVG)
✔ Ultra-fast reactive power compensation (<5ms)
✔ Power factor correction up to 0.99
✔ Ideal for fluctuating & unbalanced loads
✔ Supports hybrid compensation with capacitors
VOXCELS Case Studies & Success Stories
——

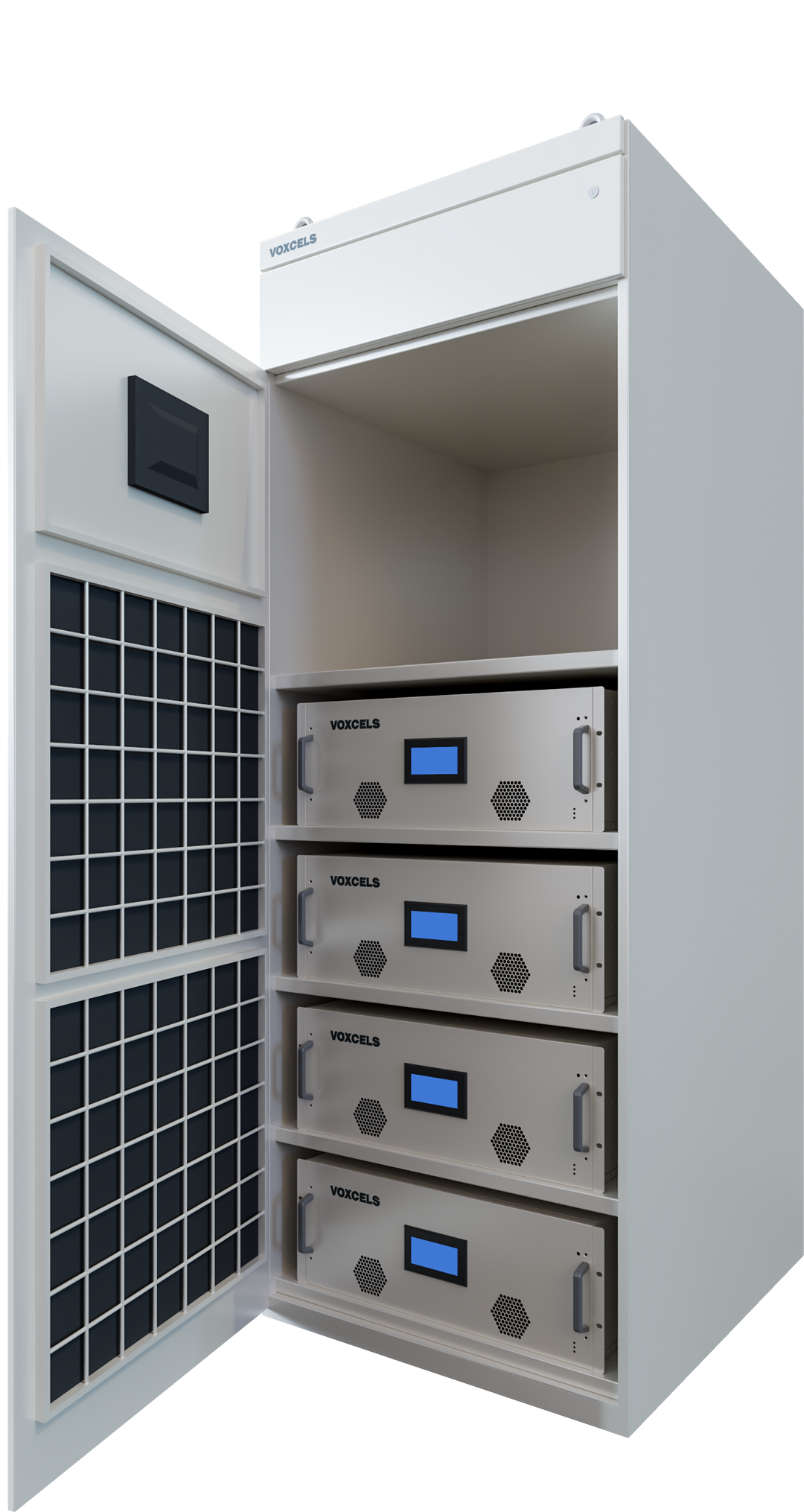

Application of AHF/SVG modules in low voltage panels
——
VOXCELS powers AHF/SVG modules can be used in the following AHF/SVG cabinets:
| Classification | Panel Type | Definition | Function | Application Scenarios | Need for AHF/SVG？ |
| Electrical Control | MCC Panel | Used to centrally control multiple motors | Start, stop, and protect motors; overload, short circuit protection; local and remote control | Industrial production lines, water treatment plants, large HVAC systems | Yes |
| (if using VFD or other non-linear loads) | |||||
| VFD Panel | Used to control motor speed and torque | Adjust motor input frequency, improve energy efficiency, provide overcurrent and overvoltage protection | Industrial manufacturing, pump and fan control, HVAC systems | Yes (due to harmonic generation) | |
| SCADA Control Panel | Integrated SCADA system for remote monitoring and control | Data acquisition and monitoring, remote control, system alarms, and reporting | Water treatment systems, power distribution, large industrial systems | Depends on specific application | |
| Distribution System | PCC Panel | Used for power distribution and management | Power distribution, power switching and management, protection against electrical faults | Large industrial facilities, commercial buildings, public infrastructure | Yes (if there are significant non-linear loads) |
| APFC Panel | Used for automatic power factor correction to improve system efficiency | Automatic detection and correction of power factor, reactive power compensation, reducing electricity bills | Industrial and commercial buildings, power distribution systems | Can be replaced by SVG/AHF cabinets | |
| Capacitor Bank Panel | Used for reactive power compensation and power factor correction | Reactive power compensation, reducing reactive power consumption, improving power factor; can be replaced by SVG modules in many scenarios | Industrial facilities, commercial buildings, power systems | Can be replaced by SVG/AHF cabinets |
Contact us Now
If you need power quality solutions, you are welcome to contact us!
