Power Quality
Static VAR Generator

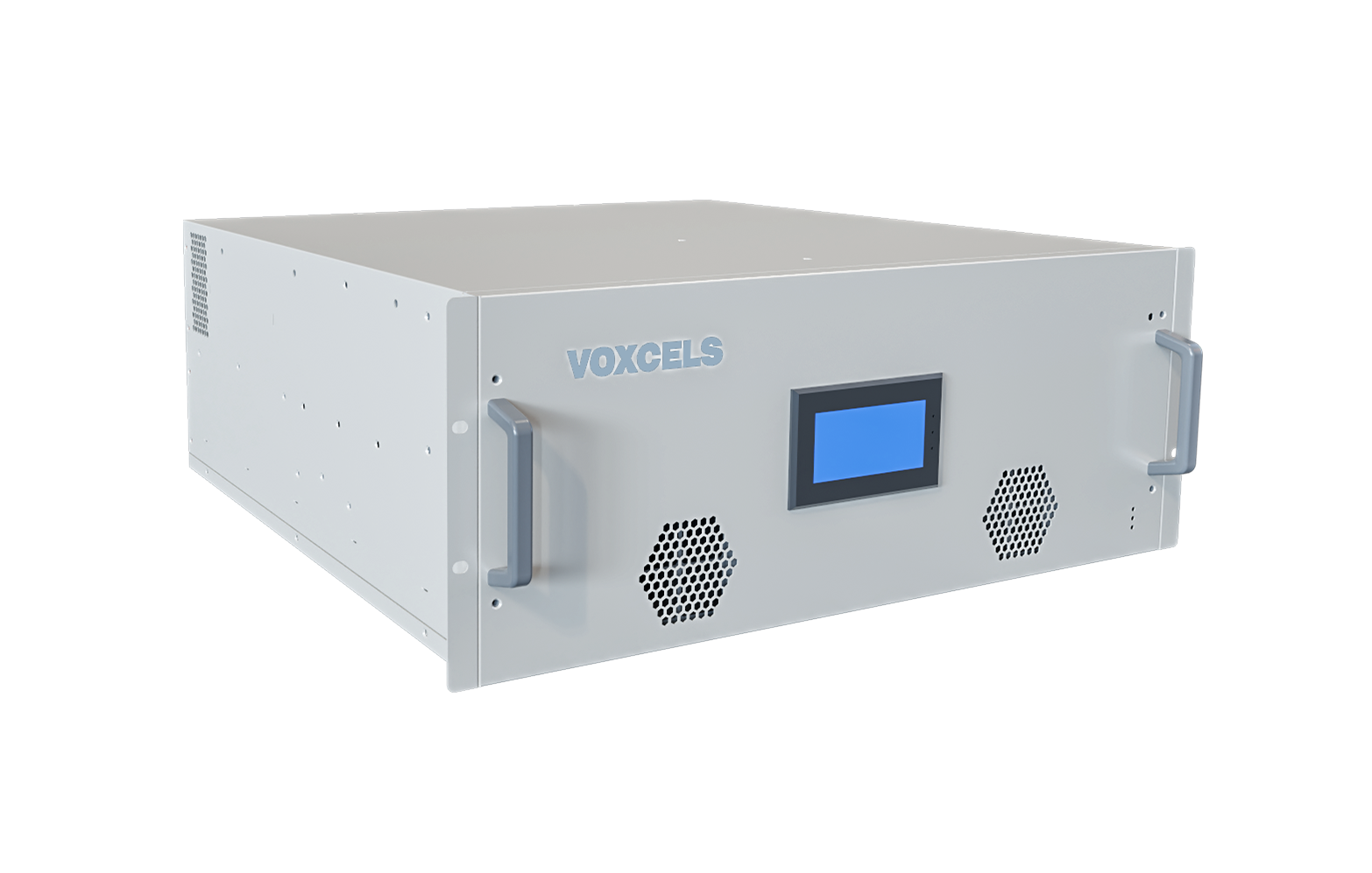

VOXCELS Static VAR Generator (SVG) is an advanced power quality solution for power factor correction, mitigates harmonics, three-phase unbalance correction, ensuring a cleaner and more efficient power system.
Inductive and capacitive reactive power compensation
Four-Quadrant SVG for PV Backfeeding
High-Voltage PCC System Compatibility
Offset Compensation
Hybrid Compensation: SVG and Capacitors

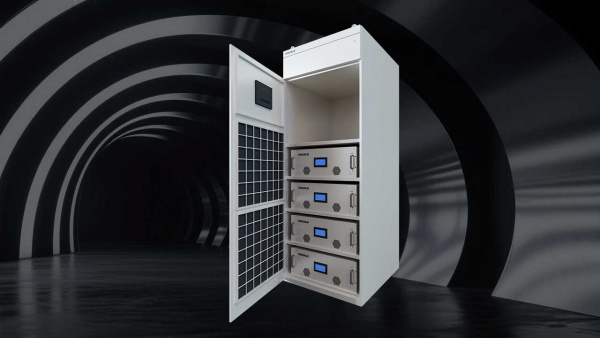

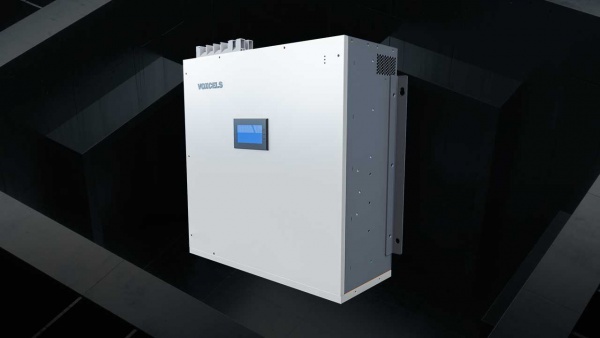

Modular Installation Options: Wall and Cabinet Solutions
Up to 50% of Enjoypowers SVG's capacity can be used for compensating harmonics up to the 17th order, enhancing power quality and system stability.
| Voltage(Vac) | ||||||
| 800 | 120 | |||||
| 690 | 120 | |||||
| 480 | 35 | 50 | 75 | 100 | 150 | |
| 400 | 20 | 35 | 50 | 75 | 100 | 150 |
| 200 | 10 | 17.5 | 25 | 37.5 | 50 | 72.5 |
Frequency: 50/60Hz
Efficiency: >97%
Response Time: <10ms
Wiring Types: 3P3W/3P4W (Compatible)
Communication Interface: RS485, Modbus Protocol

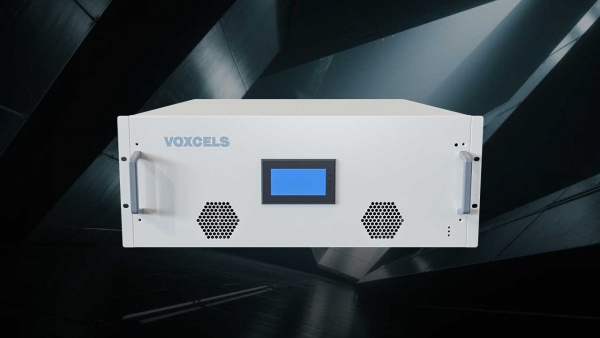

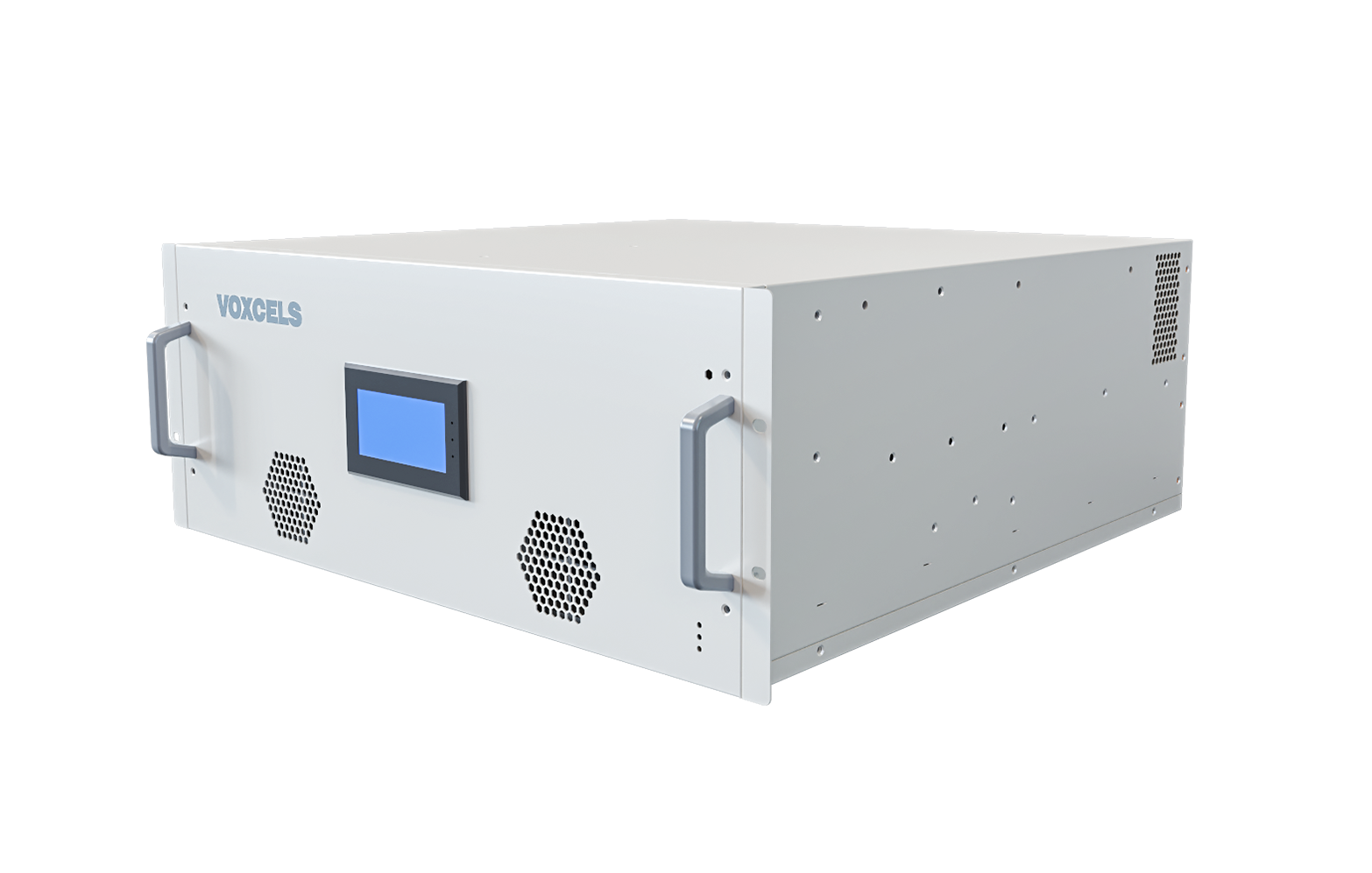

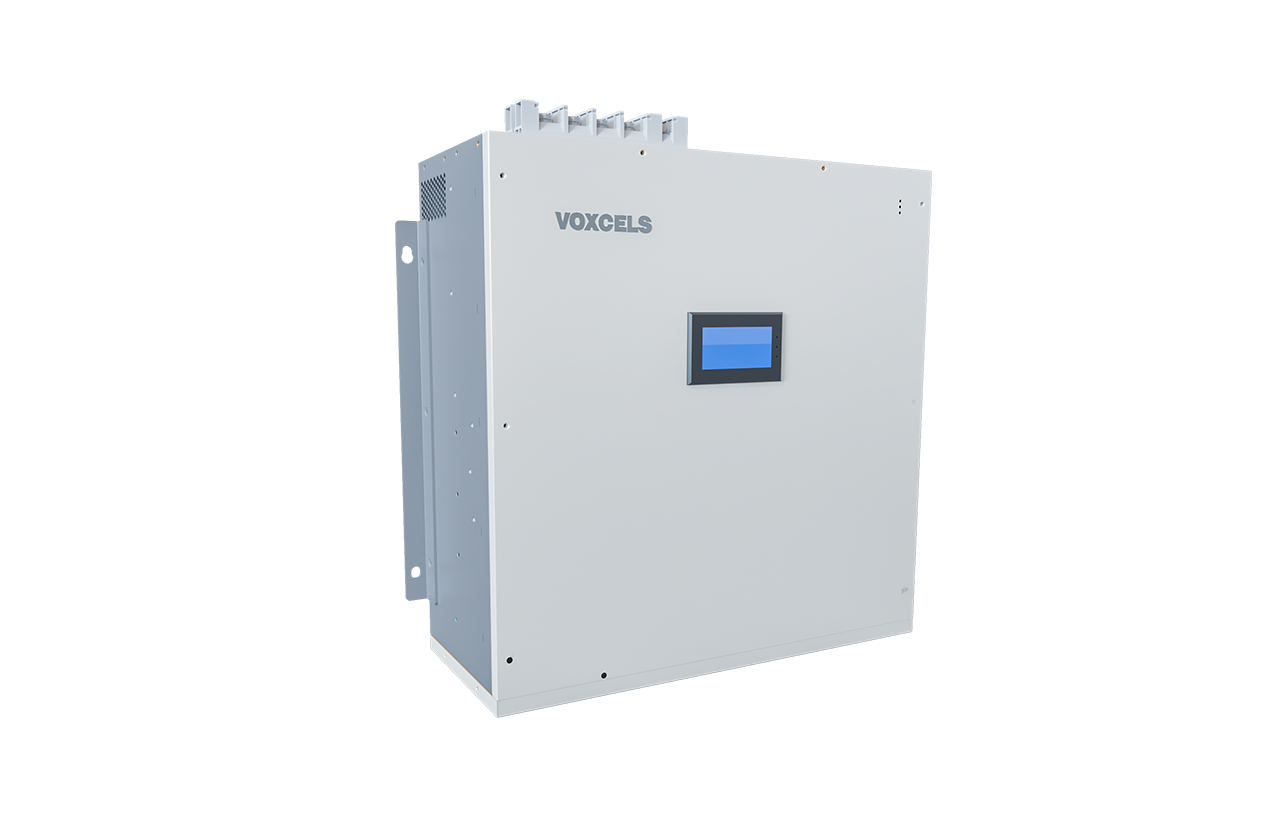

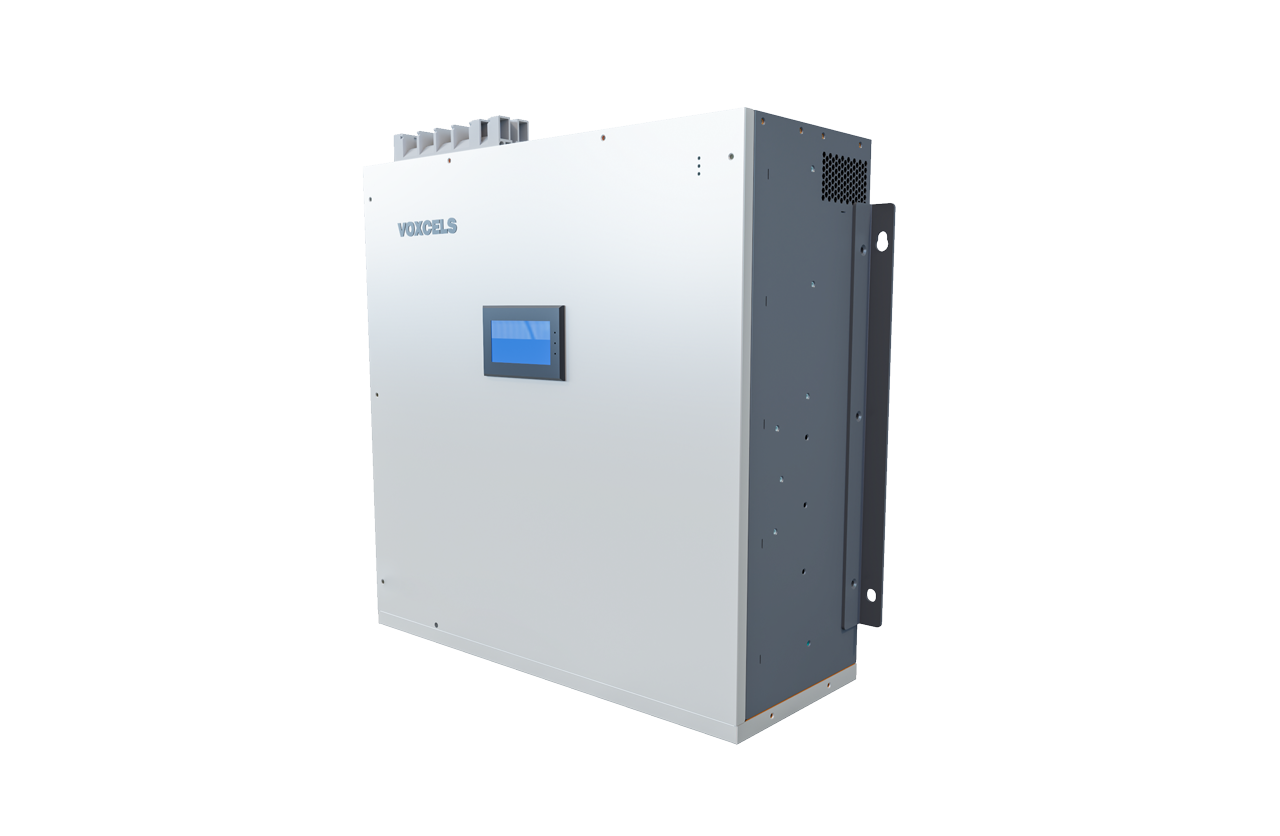

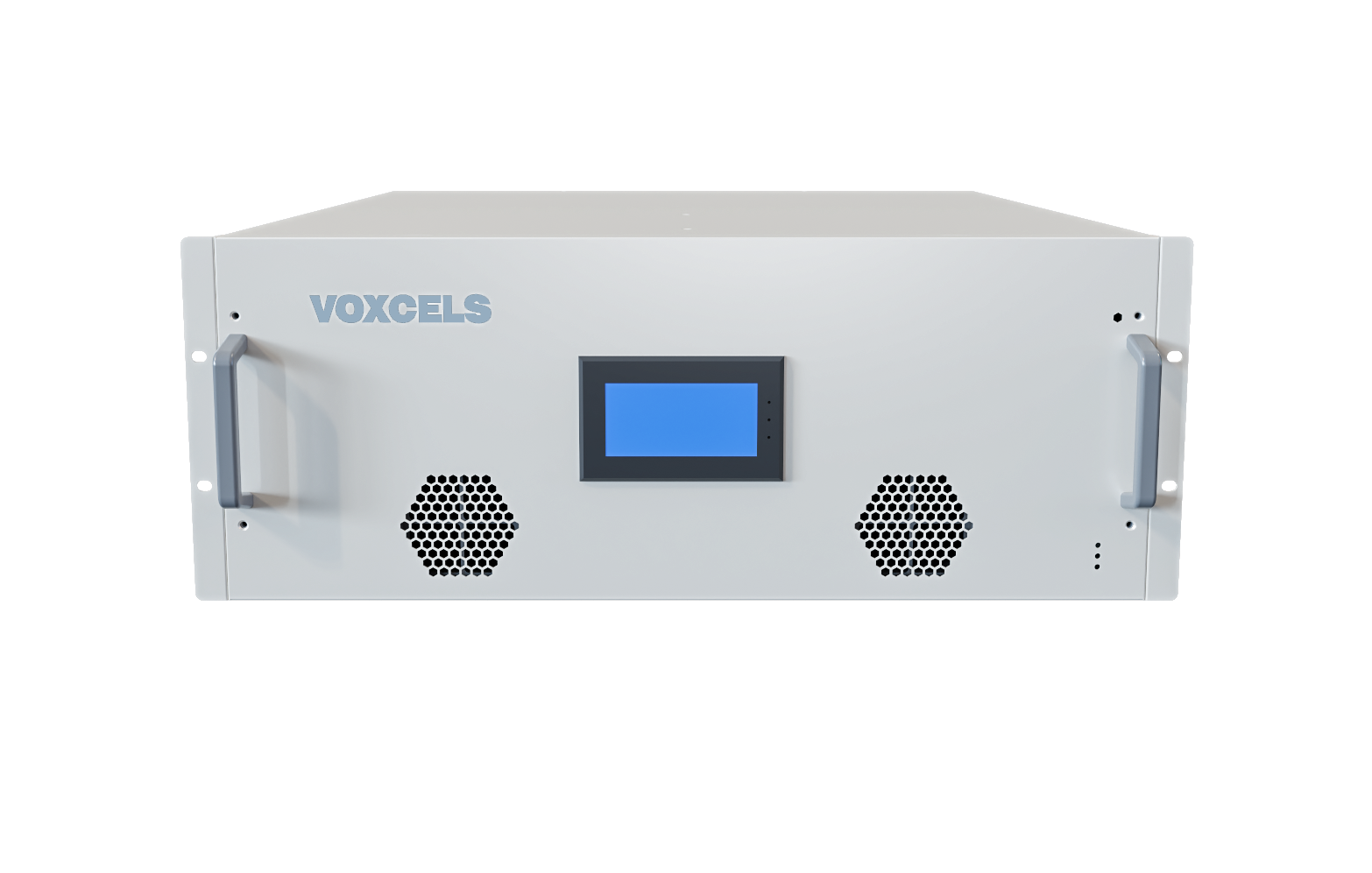

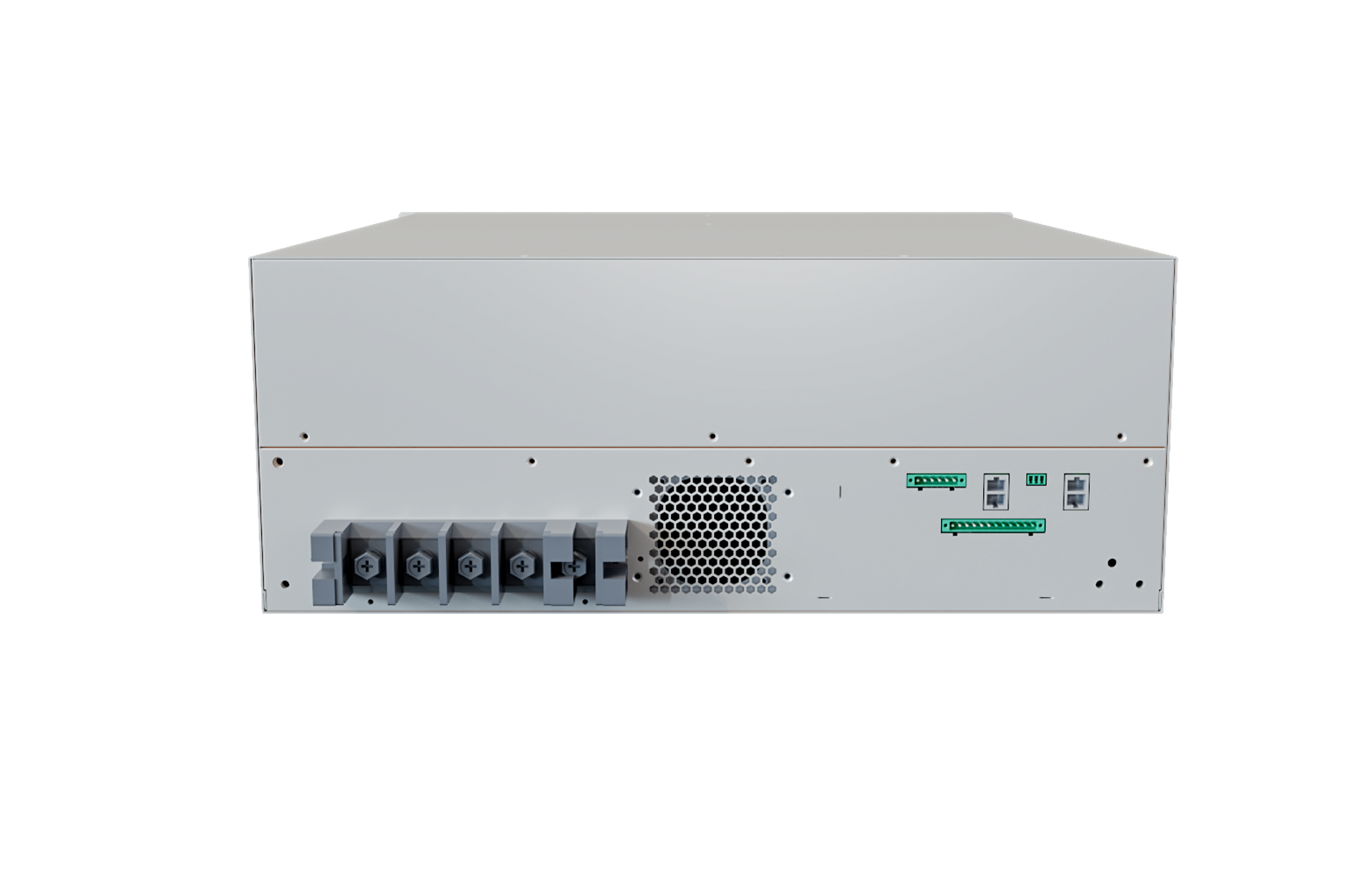

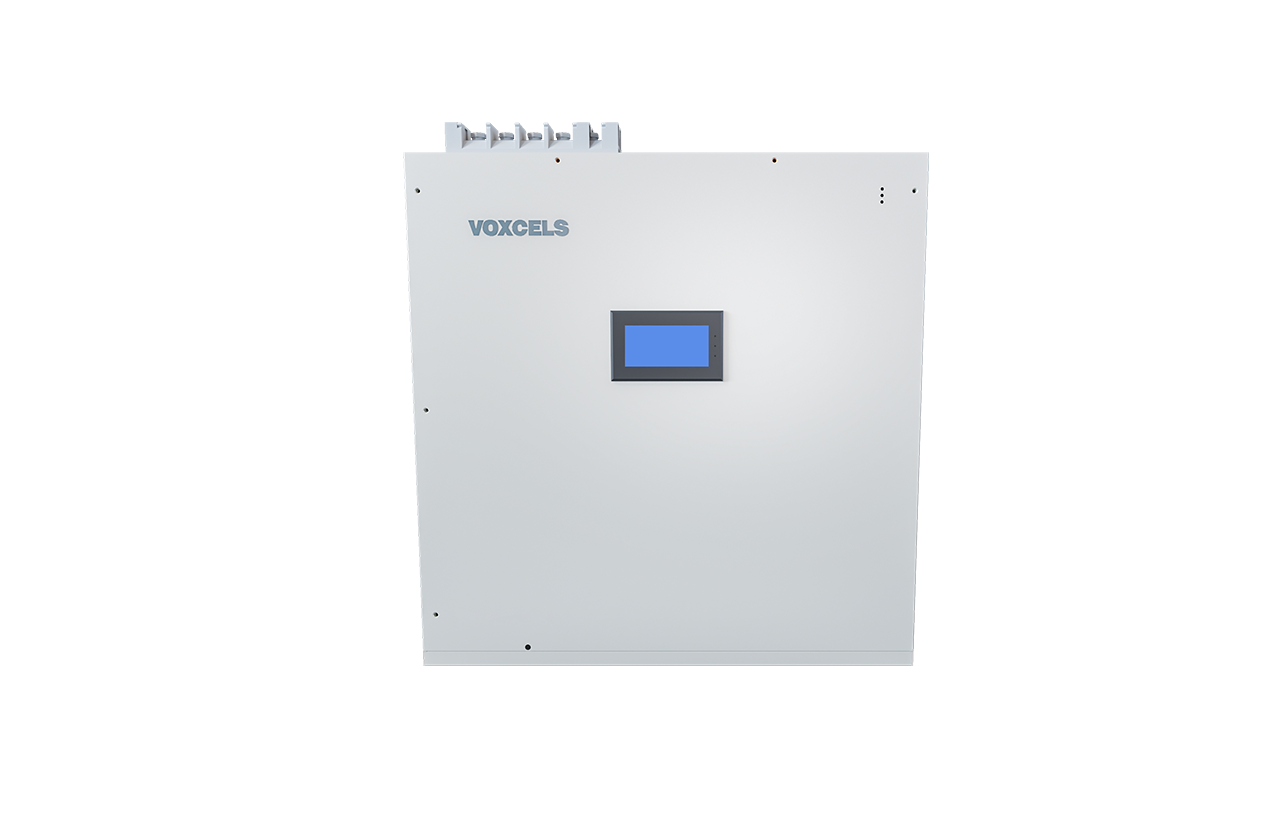

Installation Types: Rack-mount, Wall-mounted, and Floor-standing Cabinet

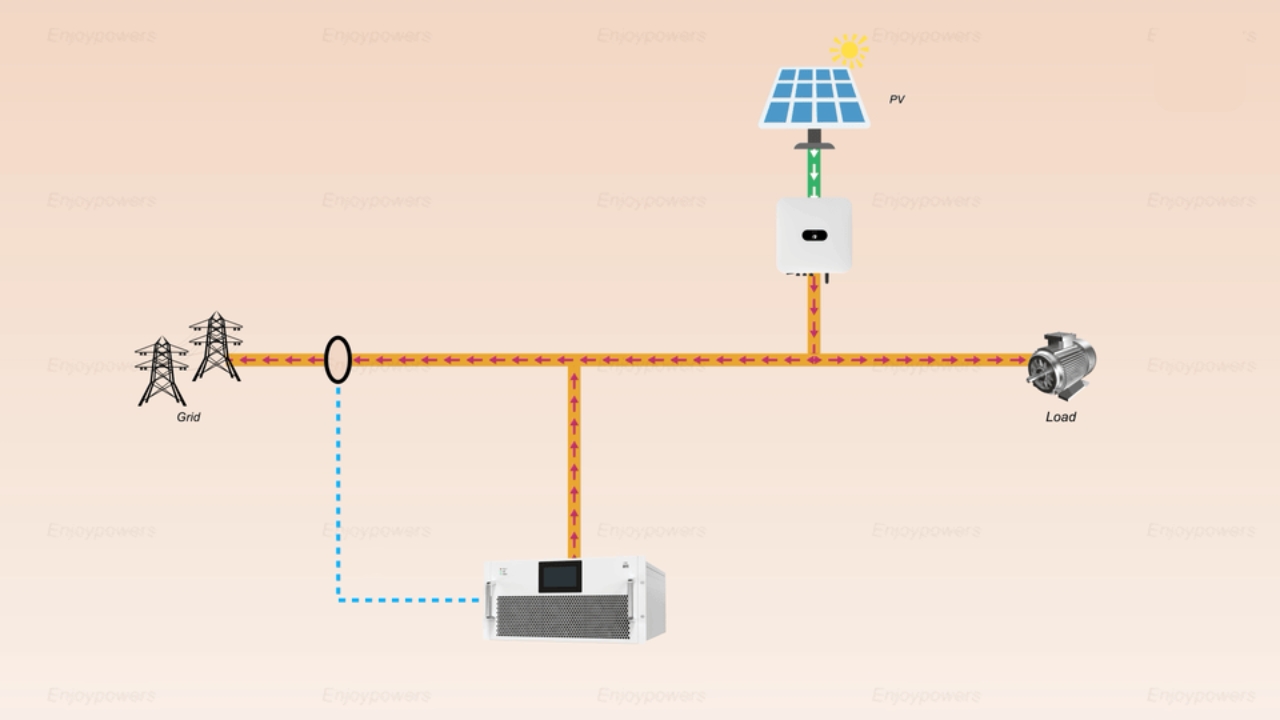

Four-Quadrant SVG for PV Backfeeding
When PV systems generate reverse current, voltage instability and power factor issues may arise. SVG’s four-quadrant functionality dynamically adjusts reactive power, ensuring stable power factor correction, grid stability, and efficient power distribution.

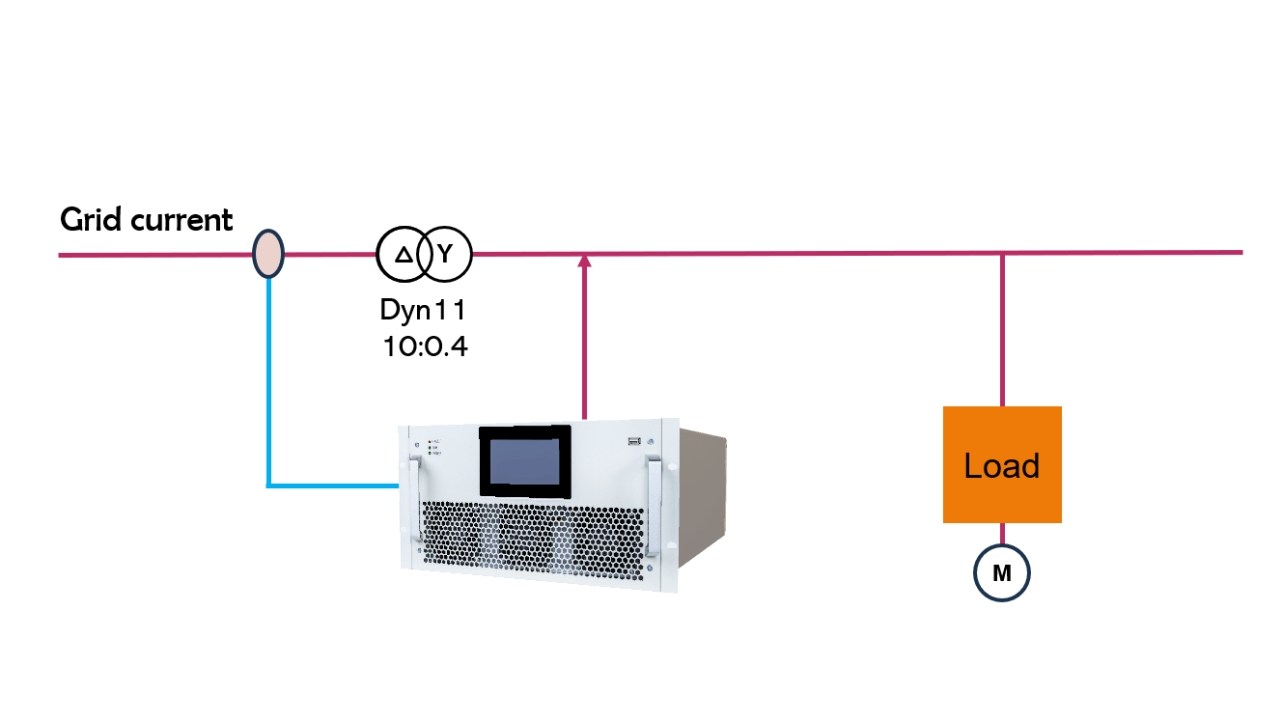

High-Voltage PCC Compatibility
When PCC is on the high-voltage side of the transformer, CT is typically installed on the high-voltage side, while SVG connects via the low-voltage side (e.g., 400V AC). SVG fully supports this installation method.

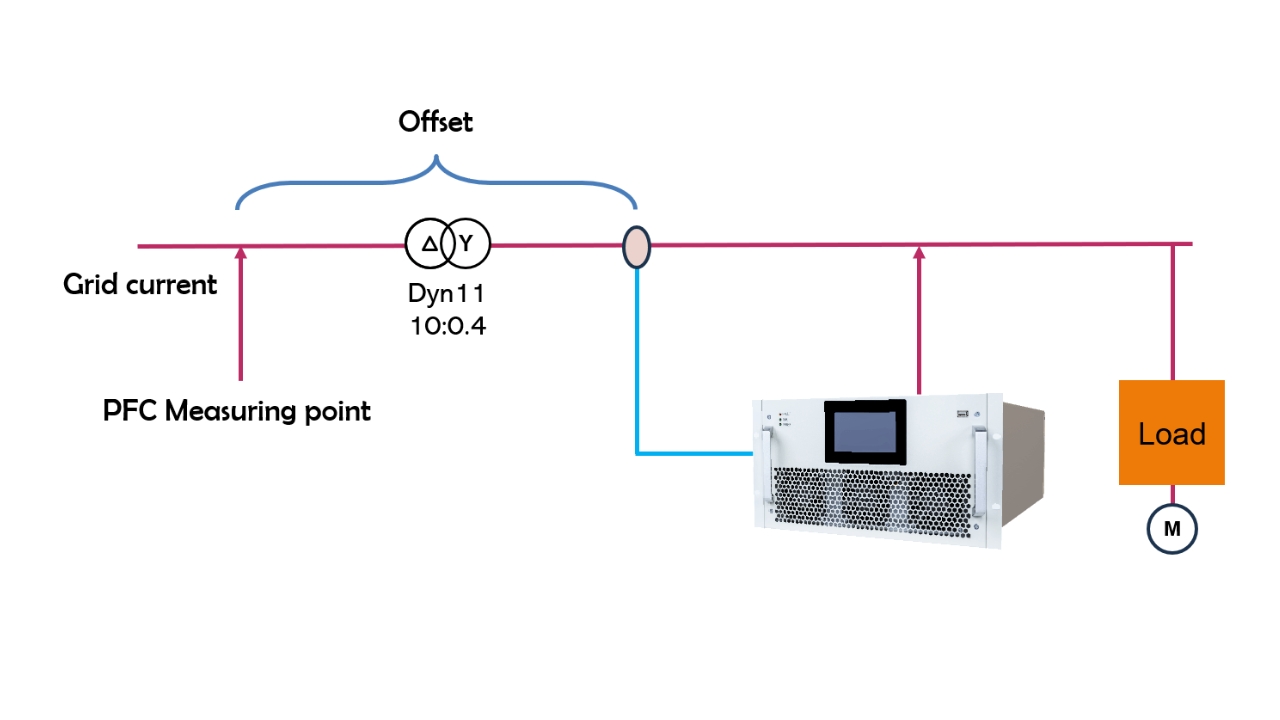

Offset makes reactive power compensation more accurate
When the SVG’s CT installation point is far from the measurement point, some reactive power remains uncompensated due to line losses. Enjoypowers’ SVG features an offset compensation function, ensuring more precise and effective reactive power correction.
Contact us Now
If you need power quality solutions, you are welcome to contact us!
